 Heating
boilers TK, TVK and DTK

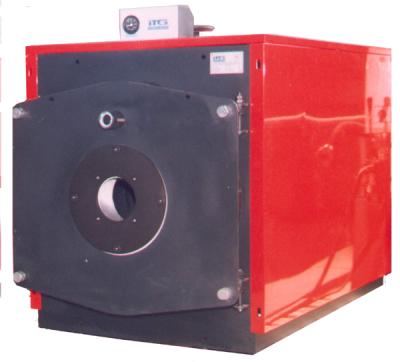

Heating boilers TK, TVK
and DTK are fire-smoke tube boilers, aimed for central heating system,
where heating is performed by liquid or gas fuel.
 Capacity
goes from 116 kW up to 3,5 MW in 22 sizes.
Permissible operating temperature is up to
110oC and pressure up to 5 bar.
Installation of ITG heating boilers is in
accordance with the DIN 4751.
Boiler consists of drum with all requried
connections as well as high quality thermal isolation with square cladding and it is
placed on the skid.
TK, TVK
and DTK boilers are made by welding of good quality boilerplates and
pipes.
With good manufacture of
ITG boilers it’s prevent the forming of condesate already at 50oC of
return water.
In flue tubes there are
turbolenters which increase boiler efficiency.
Openings for cleaning of
boiler from its flue gas side are placed on boiler’s flue gas box.
Advantages of ITG boilers:
- high efficiency and fuel combustion > 92%
- small dimension
- suitable for transport
- easy installation
- simple operation
- door and flue gas box are dismounting ones
- low cost of maintenance
- lifetime: 20 years
- garantee period: 2 years
|
